At-Line vs Inline vs Online vs Offline Analysis: The Complete Guide for Pharmaceutical PAT

What Are the Four PAT Analysis Modes?

Offline Analysis

Offline analysis removes a sample from the process and transports it to a separate laboratory for measurement. Results arrive hours or days after sampling. This remains the standard for many final product release tests — validated HPLC methods, dissolution testing, potency assays — and for good reason: offline laboratories offer tightly controlled environments, full instrument qualification infrastructure, and direct integration with established quality systems. The limitation is latency. By the time an offline result confirms an out-of-specification batch intermediate, significant process time has already elapsed, and in many cases, the batch cannot be recovered. That latency is the primary operational cost that PAT programs are designed to eliminate.

At-Line Analysis

At-line analysis — measurement performed adjacent to the process, with the sample removed from the process stream before analysis — shortens that latency to minutes. The instrument sits on the manufacturing floor, next to the reactor, or at the process line. Samples are collected from the process, either manually or via an automated discrete sampler, delivered to the instrument, and measured without leaving the immediate process area.

The critical distinction from online analysis: at-line sampling is discrete and collected at defined timepoints, not continuous. The instrument is fully accessible for maintenance, column changes, and recalibration without stopping the process. This accessibility is a meaningful operational advantage — inline and online systems often require process shutdown or bypass valve manipulation to service the analyzer, while at-line instruments can be maintained, recalibrated, or even swapped out independently of the manufacturing operation. For pharmaceutical teams with validated offline HPLC methods, at-line represents the most practical migration path — the separation chemistry is identical; only the hardware format changes.

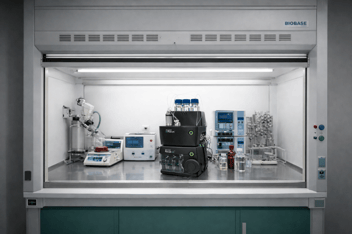

Axcend's InFocus™ system is designed for exactly this configuration: a capillary-scale HPLC positioned adjacent to a reactor vessel, drawing discrete samples through an automated sampling interface for chromatographic separation and detection at the process line.™

Online Analysis

Online analysis automatically diverts a sample from the process stream to an analyzer — typically through a bypass loop — measures it within seconds to minutes, and optionally returns the sample to the stream. No manual sampling intervention is required once the system is installed. The trade-off is infrastructure: bypass loops require engineering, pressure management, and automated sample handling systems that add installation complexity and cost. Instruments must also handle variability in feed composition and flow conditions. These engineering requirements mean online systems typically carry higher upfront implementation costs and longer installation timelines than at-line configurations, a factor that should enter procurement planning before a monitoring mode is selected.

Online NIR analyzers with bypass loops on continuous manufacturing lines are a common example — capable of providing blend uniformity data in near-real time without operator intervention.^[4]

Inline Analysis

Inline analysis inserts a sensor or probe directly into the process stream, measuring continuously without removing a sample. This provides the lowest possible latency — real-time or near-real-time data — and enables closed-loop process control when integrated with a process control system. Inline Raman spectroscopy probes, pH sensors, conductivity sensors, and inline particle size analyzers all operate in this mode.

The constraint most teams underestimate: inline sensors measure the entire process matrix simultaneously. They do not perform chromatographic separation. Distinguishing a target analyte from co-eluting impurities or structurally similar degradants using an inline spectroscopic probe requires robust chemometric models — models that must be built and validated with representative process data. For CQAs where specificity matters and co-eluting components are present, inline spectroscopy produces inaccurate data regardless of how sophisticated the model is. That is a measurement method limitation, not a modeling limitation. This specificity ceiling means that for any CQA involving closely related impurities, degradants, or isomers — common in pharmaceutical manufacturing — inline spectroscopy cannot be the primary analytical tool, regardless of how attractive the real-time data stream appears.

At-Line vs Inline vs Online vs Offline: Side-by-Side Comparison

The most common confusion is between online and at-line. Online systems divert samples automatically and continuously; at-line systems collect samples discretely, either manually or via an automated sampler. For most pharmaceutical process chemists working with established HPLC methods, that distinction determines whether your existing method expertise translates — or requires complete redevelopment.

Method transfer effort scales directly with how far you move from offline toward inline. A team moving an offline reverse-phase HPLC method to at-line is adapting column dimensions, flow rates, and injection volumes — one-time work with a known endpoint. A team attempting to replace that same method with an inline Raman probe is building a new measurement system from the ground up, with training set requirements, model validation, and ongoing model maintenance. Neither approach is wrong — but they require different resources and timelines. In practice, that difference often means at-line HPLC can be operational within weeks of project initiation, while inline spectroscopic methods may require months of chemometric model development before generating defensible CQA data.

What Does FDA Say About PAT and Monitoring Mode Selection?

FDA's PAT guidance does not mandate a specific monitoring mode, and that is an important point that vendor literature frequently obscures. The 2004 guidance establishes a framework that accommodates all four modes within a risk-based approach. The selection criterion is not "which mode is most technologically advanced" but "which mode best supports understanding and control of the CQA in question."

The guidance defines PAT tools broadly — multivariate data acquisition and analysis tools, process analyzers, process control tools, and continuous improvement frameworks — all four monitoring modes qualify as process analyzers under this definition.^[1] FDA's stated goal is not to generate more data but to acquire better process understanding. Collecting continuous inline data for a CQA that only requires discrete time-point confirmation is collecting more data, not better data. In a regulatory submission context, deploying a more complex monitoring mode without a corresponding improvement in process understanding can actually complicate the filing — reviewers will expect the additional complexity to be scientifically justified.

ICH Q8 (Pharmaceutical Development) and ICH Q10 (Pharmaceutical Quality System) reinforce PAT adoption within a Quality by Design framework.^[3] QbD defines the Critical Quality Attributes and Critical Process Parameters that must be monitored; PAT provides the measurement tools.^[3] Real-time release testing, explicitly enabled by FDA guidance, allows manufacturers to substitute real-time process data for end-product testing when sufficient process understanding is demonstrated — at-line HPLC data qualifies when the method is appropriately validated.^[1] For manufacturers seeking to reduce end-product testing burden and shorten batch release timelines, a well-validated at-line HPLC method can be a more direct path to RTRT approval than a complex inline system requiring chemometric model revalidation with every process change.

PAT adoption is not mandatory. It is an encouraged framework that FDA has actively supported since 2004 to reduce manufacturing risk and improve process understanding. Method validation requirements apply regardless of monitoring mode — an at-line HPLC method must be validated with the same rigor as its offline equivalent.^[5]

When Should You Choose At-Line Monitoring?

At-line monitoring is the correct choice under specific, identifiable conditions. Working through these criteria before selecting a monitoring mode prevents the most common — and costly — implementation mistakes.

Choose at-line when the CQA requires chromatographic separation. If the target analyte cannot be distinguished from matrix components or structurally similar impurities without HPLC separation, inline spectroscopic methods are insufficient by design. This is the most frequently overlooked selection criterion. Nitrosamine impurity monitoring, API intermediate concentration with co-eluting process impurities, and reaction conversion monitoring involving closely related compounds all require separation. At-line HPLC is the appropriate mode. Selecting an inline spectroscopic approach for these CQAs does not reduce monitoring costs — it creates a measurement gap that will surface during method validation or regulatory review.

Choose at-line when the process environment cannot accommodate an inline probe. Reactors operating under high pressure, extreme temperature, or with aggressive solvent systems may not support inline sensor installation. At-line sampling removes the sample before measurement, protecting the instrument from process conditions.

Choose at-line when discrete time-point sampling matches the process cadence. Many batch pharmaceutical processes require measurement at defined intervals — end of reaction, post-crystallization, post-filtration — not continuously. At-line monitoring matches this cadence precisely, without the infrastructure overhead of a full inline or online system. Installing an inline continuous monitoring system to answer a question that only arises three times per batch adds cost and complexity without improving the answer.

Choose at-line when method transfer from a validated offline method is required. At-line HPLC uses the same separation chemistry as laboratory HPLC. Translating a validated method to capillary scale requires adapting flow rates, column dimensions, and injection volumes — manageable development work. Replacing that method with an inline spectroscopic approach requires building a new measurement system from scratch, with all the validation and regulatory documentation that entails.

Do not choose at-line when truly continuous feedback is required for closed-loop process control. If a process parameter must be adjusted in real time based on measurement data — crystallization endpoint control, for example — the minutes of latency inherent in at-line sampling are too slow. Inline or online monitoring is appropriate there. The decision is not about preference; it is about whether the process control requirement is compatible with a discrete sampling interval.

For pharmaceutical applications requiring high-resolution separation data at the process line — impurity profiling, API intermediate concentration monitoring, reaction conversion — capillary-scale at-line HPLC is the practical path. Axcend's InFocus system brings laboratory-grade HPLC separation to a footprint small enough to sit adjacent to a reaction vessel, with 99% less solvent consumption than analytical-scale HPLC and no requirement for inline probe installation.

What PAT Tools Are Used to Monitor CQAs in Pharmaceutical Manufacturing?

Spectroscopic Tools (Typically Inline or Online)

Near-infrared spectroscopy is the most widely deployed inline PAT tool in pharmaceutical manufacturing — used for blend uniformity, moisture content, and API concentration monitoring.^[4] Raman spectroscopy is growing in use for polymorphic form identification and API concentration in solution; both inline probe and at-line benchtop configurations are available.^[4] UV/Vis spectroscopy covers simpler concentration monitoring needs at lower cost.

The practical ceiling for all spectroscopic tools: they measure the entire sample matrix simultaneously. They are well-suited for single-component tracking in well-characterized matrices and limited when co-eluting components must be individually resolved. Raman spectroscopy inline and at-line pharmaceutical PAT applications have expanded significantly, but chemometric model development and maintenance requirements remain substantial. Any process change that alters the matrix composition — a raw material supplier change, a formulation adjustment, a scale-up — may require model revalidation, an ongoing resource commitment that should be factored into total cost of ownership when selecting spectroscopic PAT tools.

Chromatographic Tools (Typically At-Line)

HPLC is the gold-standard separation method and the natural fit for at-line pharmaceutical process monitoring where analyte specificity is required. Compact capillary-scale systems — like the Axcend Focus LC^® — reduce the footprint and solvent burden enough to make adjacent process placement practical, without sacrificing the separation performance that makes HPLC valuable for impurity profiling and purity monitoring at the process line. Because the underlying separation chemistry is identical to laboratory HPLC, regulatory submissions can reference existing method validation data with targeted supplemental validation for the at-line configuration — a meaningful reduction in the regulatory development burden compared to qualifying a new measurement technology.

Physical and Chemical Sensors (Typically Inline)

pH, conductivity, and dissolved oxygen probes are real-time, well-established in bioprocessing, and require no separation. Inline particle size analyzers are used in crystallization and spray drying monitoring. These tools provide continuous data streams and are appropriate for CQAs that can be measured directly in the process matrix without separation. Their value is highest when the CQA is a physical property rather than a molecular identity — and lowest when what you actually need to know is the concentration of one specific compound in the presence of several others.

The most sophisticated PAT programs combine modes: inline spectroscopic sensors for continuous feedback, with periodic at-line HPLC measurements to provide separation-resolved confirmation. These modes are complementary, not competitive. A common and effective architecture pairs inline NIR for high-frequency process trending with at-line HPLC at defined process timepoints to provide the specificity data that NIR cannot deliver — giving teams both the speed of continuous monitoring and the analytical rigor of chromatographic separation.

How Does Quality by Design Connect to PAT Mode Selection?

Quality by Design (QbD), defined in ICH Q8, is a systematic approach to pharmaceutical development that begins with predefined objectives and emphasizes product and process understanding based on sound science and quality risk management.^[2] PAT is the primary technical enabler of QbD in manufacturing — it provides the real-time or near-real-time process data needed to demonstrate and maintain that understanding across the design space.

The connection to monitoring mode selection is direct: QbD defines the CQAs and Critical Process Parameters that must be monitored; PAT determines how. The appropriate monitoring mode depends on the measurement frequency required, the latency the process can tolerate, and which analytical technique can actually measure the CQA with sufficient specificity. A QbD team that selects monitoring mode before completing this analysis is making a capital decision before completing the science — a sequence inversion that causes most PAT implementation failures. The practical corrective is to write the measurement requirement specification — what analyte, at what concentration range, with what specificity, at what frequency — before issuing any instrument RFQ or initiating vendor discussions.

Manufacturers implementing QbD with appropriate PAT support are better positioned for RTRT submissions to FDA, which can reduce or eliminate end-product testing requirements. That regulatory and operational benefit is real, but it requires that the PAT data come from a validated method with demonstrated specificity for the CQA. Monitoring mode selection is where that specificity is won or lost.

Common Mistakes in PAT Monitoring Mode Selection

Selecting inline spectroscopy for CQAs that require separation. This is the single most common and expensive mistake in pharmaceutical PAT implementation. Teams choose inline Raman or NIR because it is continuous and perceived as sophisticated — before determining whether the CQA can actually be measured without chromatographic separation. It often cannot. Define the measurement requirement fully before selecting the technology. A chemometric model cannot recover specificity that the underlying measurement technique cannot provide; if the analyte and its nearest impurity have overlapping spectral signatures, no amount of modeling sophistication resolves that overlap.

Underestimating method transfer effort for at-line HPLC. Moving an offline HPLC method to capillary-scale at-line requires adapting column dimensions, flow rates, and injection volumes. This is a one-time investment that pays dividends across every subsequent analysis, but it must be planned explicitly in project timelines. Teams that treat it as a simple "plug-in" consistently underdeliver on implementation schedules.

Choosing monitoring mode before defining the CQA measurement requirement. Monitoring mode is a measurement technology decision. Measurement technology decisions follow from measurement requirements. That sequence matters. The one-page measurement requirement specification — analyte identity, matrix complexity, required specificity, acceptable latency, sampling frequency — is the document that makes every subsequent technology decision defensible, both internally and to regulators.

Neglecting CDS integration in instrument selection. At-line HPLC systems vary in their chromatography data system compatibility. Confirming that your selected at-line instrument integrates with your existing CDS — OpenLab, Empower, Clarity — before procurement prevents integration gaps that delay validation and regulatory submission. A system that generates data outside your qualified CDS environment creates a data integrity question that must be resolved before the method can support a regulatory filing.

Conclusion

The four PAT monitoring modes sit on a spectrum from maximum flexibility and analytical capability (offline and at-line) to maximum speed and process integration (online and inline). No mode is universally superior. The correct choice follows from three questions: What does the CQA require analytically? What latency can the process tolerate? What infrastructure is practical at this manufacturing stage?

When the CQA requires chromatographic separation and instrument accessibility matters, at-line HPLC is the appropriate mode — and the one most underutilized in pharmaceutical process monitoring today. The historical barrier to at-line HPLC has been instrument size and solvent logistics; capillary-scale systems that reduce solvent consumption by 99% and fit adjacent to a reactor vessel remove both constraints simultaneously.

Axcend's InFocus system is designed specifically for at-line pharmaceutical process monitoring, bringing capillary-scale HPLC separation to the process line in a footprint that sits adjacent to a reaction vessel. To discuss whether at-line HPLC fits your PAT program, contact Axcend's applications team or request a demonstration.

Frequently Asked Questions

Q: What is the difference between at-line, inline, online, and offline analysis in pharmaceutical manufacturing?

Offline analysis occurs in a separate laboratory, with results delayed hours or days. At-line analysis uses an instrument adjacent to the process, with results in minutes. Online systems automatically divert samples from the process stream for near-real-time measurement. Inline sensors measure directly inside the process stream continuously, without sample removal. The practical consequence of these differences is not just speed — each mode has different implications for what analytical techniques are feasible, what CQAs can be measured with sufficient specificity, and what regulatory validation pathway applies.

Q: What does at-line analysis mean in process analytical technology?

At-line analysis means the analytical instrument is located immediately adjacent to the manufacturing process. A sample is collected from the process — either manually or by an automated sampler — delivered to the instrument, and measured within minutes. The instrument remains accessible for maintenance and recalibration without interrupting the manufacturing process. This accessibility makes at-line the preferred mode when analytical methods require periodic column changes, recalibration, or troubleshooting — all routine requirements for HPLC-based monitoring.

Q: When should a pharmaceutical manufacturer choose at-line monitoring over inline monitoring?

Choose at-line monitoring when: (1) the critical quality attribute requires chromatographic separation to measure accurately; (2) the process environment cannot accommodate an inline probe; (3) discrete time-point sampling is sufficient rather than continuous monitoring; or (4) method transfer from an existing validated HPLC method is required. At-line is typically lower in infrastructure cost than inline, and it preserves full analytical method flexibility — if the CQA or process changes, the at-line method can be updated without re-engineering process hardware.

Q: What are the FDA requirements for Process Analytical Technology in pharmaceutical manufacturing?

FDA's 2004 PAT guidance ("PAT — A Framework for Innovative Pharmaceutical Development, Manufacturing, and Controls") does not mandate PAT adoption but provides a regulatory framework encouraging it. FDA does not specify a required monitoring mode. The guidance supports all four modes within a risk-based approach, aligned with Quality by Design principles established in ICH Q8. This means the regulatory burden falls on demonstrating that your chosen mode provides sufficient process understanding for the CQA in question — not on selecting a particular technology.

Q: How does at-line HPLC support real-time release testing in pharmaceutical manufacturing?

At-line HPLC generates chromatographic separation data for critical quality attributes — such as API concentration or impurity levels — directly at the process line, with results available in minutes. This data can be incorporated into real-time release testing programs, as supported by FDA PAT guidance, reducing dependence on time-delayed offline laboratory analysis. Because at-line HPLC uses the same separation chemistry as validated offline HPLC methods, the analytical specificity that regulators expect for impurity and potency CQAs is already built into the measurement — a meaningful advantage over spectroscopic PAT tools that require separate demonstration of selectivity.

Q: What PAT tools are commonly used to monitor critical quality attributes in pharmaceutical manufacturing?

Common PAT tools include: inline NIR and Raman spectroscopy probes for blend uniformity, moisture, and API concentration; inline pH, conductivity, and dissolved oxygen sensors for bioprocessing; online UV/Vis analyzers with bypass loops; and at-line HPLC systems for applications requiring chromatographic separation, such as impurity profiling and reaction conversion monitoring. The selection among these tools should be driven by the specificity requirement of the CQA — tools that measure the entire sample matrix simultaneously (spectroscopic) are appropriate when the analyte can be distinguished without separation; tools that provide chromatographic separation are required when it cannot.

Q: How does Quality by Design relate to Process Analytical Technology in drug manufacturing?

Quality by Design (QbD), defined in ICH Q8, establishes Critical Quality Attributes and Critical Process Parameters that must be understood and controlled throughout manufacturing. PAT provides the measurement tools to monitor these parameters in real time or near-real time. PAT is the primary technical enabler of QbD in commercial pharmaceutical manufacturing operations. The practical connection is sequential: QbD analysis defines what must be measured and why; PAT mode selection determines how — and choosing that mode before completing the QbD analysis is the error that most commonly leads to misaligned instrument procurement.
