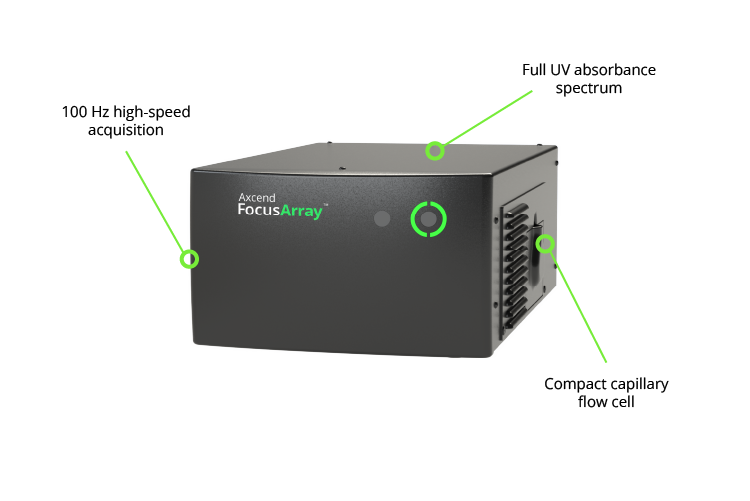

Instruments Website Callouts - FocusArray
Take a Closer Look at the

FocusArray™

High-Precision Detection for Capillary HPLC

Purpose-built for the Axcend Focus LC®, FocusArray™ delivers full-spectrum UV absorbance with exceptional linearity and trace-level sensitivity.

Unleash the Full Power of Your Capillary LC

Push analytical boundaries with advanced spectral coverage, precision data, and seamless Focus LC integration. Purpose-built for low-flow environments, FocusArray combines high-performance optics with Axcend’s compact LC innovation. The result? Confident quantification—even at trace levels—and better insight from every sample.

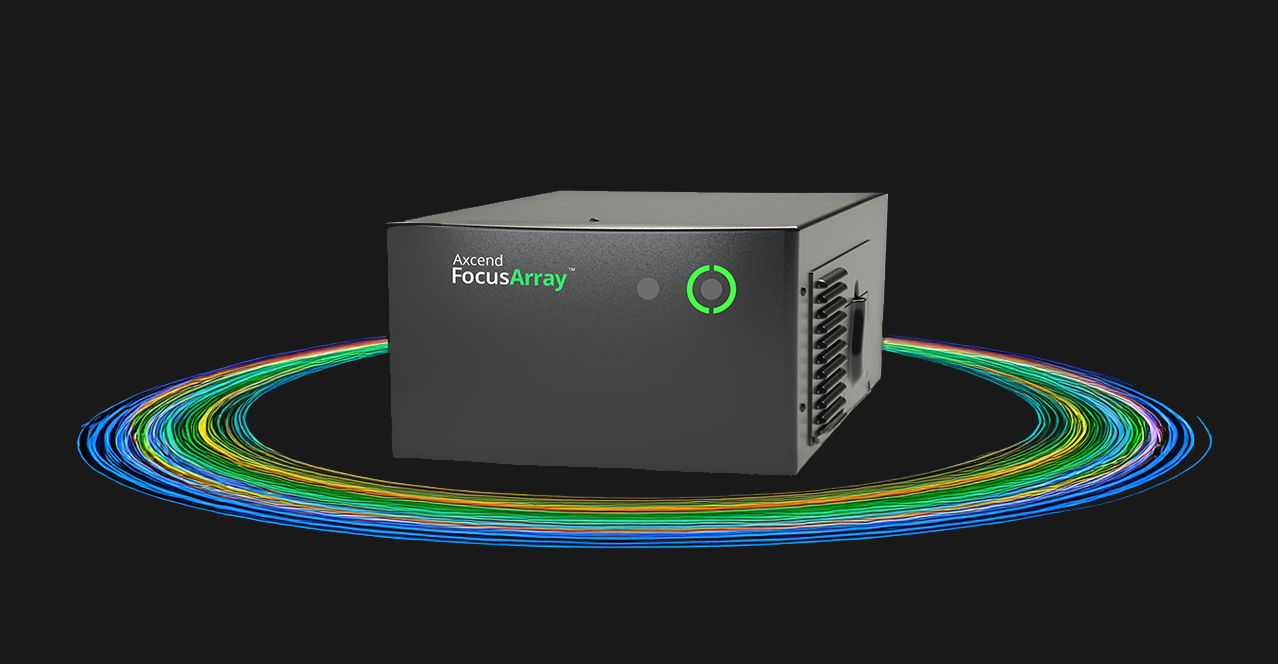

FA 1 v1 3

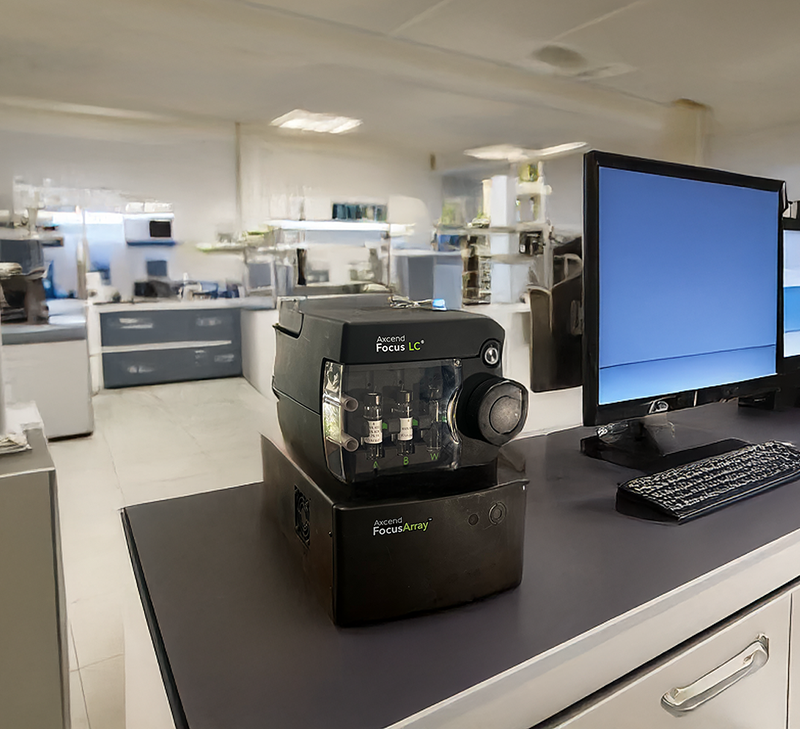

FA 4 - tentative

Superior Sensitivity

Detect low-abundance analytes with a 12 nL flow cell and 1.2 mm pathlength for minimal dispersion and high accuracy.

FA 2

Exceptional Linearity

Quantify both major and minor components with confidence, thanks to three orders of magnitude linearity.

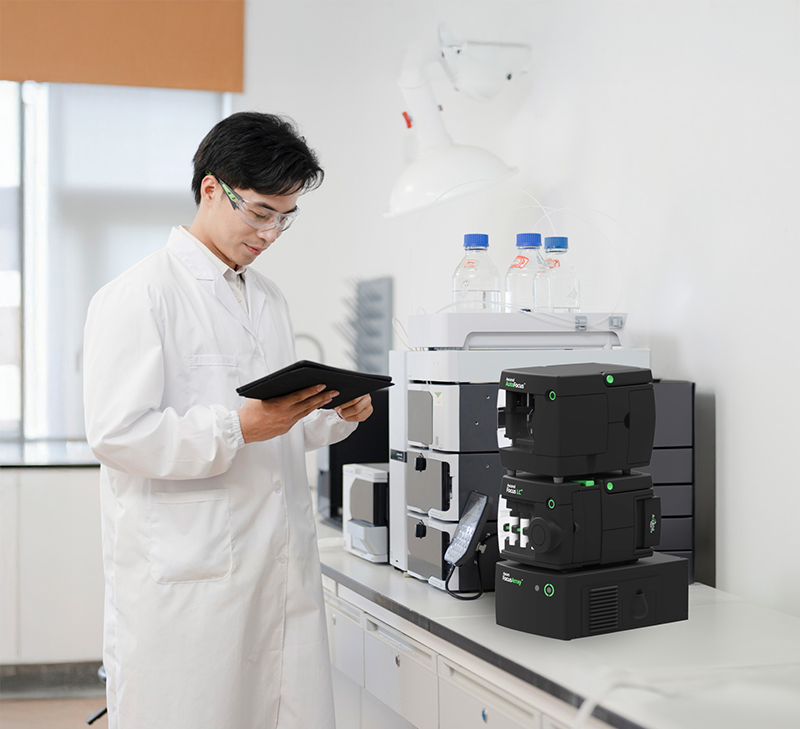

Full Stack in Lab

Seamless Integration

Monitor reactions, separations, and QC processes in near real time with plug-and-play control from a single software interface.

Real World Success Stories

The Axcend Focus LC is a powerful tool that allows us to monitor critical data in real time at the point of production.

Ashley Matthews

Director of Quality
Vestaron
The size of the instrument, ease-of-use and low price point give our students practical experience and exposure to the chromatography challenges they’ll face in the workplace. The Axcend Focus LC is the right choice for inexperienced users because it’s hard to break.

Dr. Clinton King

Organic Chemistry Lab Manager
Utah Valley University

Experience chromatography without limits

Request a Demo
Key Features & Specs

Engineered for Accuracy at Every Level

FocusArray delivers full-spectrum UV-Visible detection, enabling sharper peak profiles, fast acquisition rates, and precise quantification—even at low flow rates. Compact, rugged, and compatible with leading LC software, it’s designed to keep your workflows moving.

8569153_index_radiation_ray_sun_ultraviolet_icon

Full UV-Visible Wavelength Range

Capture maximum absorbance across a wide spectral window (190-700 nm).
6890194_arrow_oneway_route_icon

Optimized Flow Cell

12 nL volume and 1.2 mm pathlength enable sharp peaks and high sensitivity.
6769200_clock_sync_time_icon

Fast, Reliable Data Acquisition

Collect data up to 100 Hz for precise peak integration and minimal baseline drift.
10928923_cog_gear_machine_config_icon

Quick-Access Maintenance

Deuterium lamp access through a front-panel door makes routine maintenance easy.
11849960_toggle_switch_light_on_icon

Smart Traceability & Compliance

Built-in RFID tracking for lamps and flow cells supports GLP and audit-ready traceability.
6805040_compose_feather_poetry_icon

Compact and Lightweight

Weighs just 12.6 lb, stacks cleanly with other Focus modules for a minimal lab footprint.
expand your focus

Build the System that Works for You

Focus LC (w label)

Axcend Focus LC®

Have flexible performance and repeatable results anywhere you work.

View Now
AutoFocus (w label)

AutoFocus™

Automate your sample injection for repeatable results and low carry-over.

View Now
InFocus (w label)

InFocus™

Access more precise reaction monitoring with our real-time PAT system.

View Now

Trusted Results.
New Possibilities.

Experience Axcend technology firsthand and see how the fastest real-time monitoring and smallest footprint in the industry can make an impact on your workflow.

Request a Demo

Have questions?
Get in touch with our team now.

Industry Applications

Broad Range of Uses

The flexibility and reliability of the Focus LC allow you to use the system to tackle nearly any analytical chemistry challenge. Browse some recent examples below.
